Data TV Telephone Wiring

Two pairs of wires are used for phone cables. The colours of the first pair are red (ring) and green (tip). The second colors of the second pair are yellow (ring) and black (tip).

For one telephone line, only 2 wires are required. Two separate phone lines are carried by a 4-strand wire. The twisting prevents the mutual interference of lines. If you want to run lines more than 2, a 6-strand or higher is recommended.

DSL service makes use of a single pair of wires to travel. The colors of the wire are red and green. If you want to have a DSL service on all connected jacks, green and red wire are hooked from the outside phone network.

A VAT 6 network cable also known as Category 6 cable can be termed as a standardized twisted pair cable that has been used for Ethernet and other types of network physical layers. This type of table shows compatibility with the CAT 3 and CAT 5/5e cable standards.

If you don’t find any possibility for repair, you need to replace a TV power cord. At Vuta Electrical, we have a team of vastly experienced and skilled technicians who know how to serve our clients by replacing power cords affordably.

The bandwidth of the cable that provides support for transferring data is the fundamental difference between CAT5e and CAT6 cable.  CAT6 cables are capable of handling frequencies up to 250 MHz while CAT 5e cables can deal with 100 MHz.

The Cat 5 standard is capable of offering performance up to 100 MHz. It is very good option for various Ethernet varieties. Cat 5 is can also be utilized for carrying other signals like video and telephony. Modular connectors and punch-down blocks are used to connect this cable.

Wall-mounted TVs need power and cable lines routed neatly behind the wall for a clean look. Vuta Electrical installs this wiring throughout Missouri homes, concealing cables safely within the wall cavity. This service eliminates visible cords hanging beneath the television.

Ethernet connections offer more stable speeds and lower latency than WiFi, especially for gaming or video calls. Vuta Electrical runs dedicated ethernet wiring throughout Missouri homes to support these demanding uses. A wired connection reduces dropouts common with wireless networks alone.

Home office ethernet ports work best near the desk setup and centrally located for multiple device connections. Vuta Electrical plans data cable installation throughout Missouri home offices based on actual workspace layout. Proper placement avoids messy cable runs across the room.

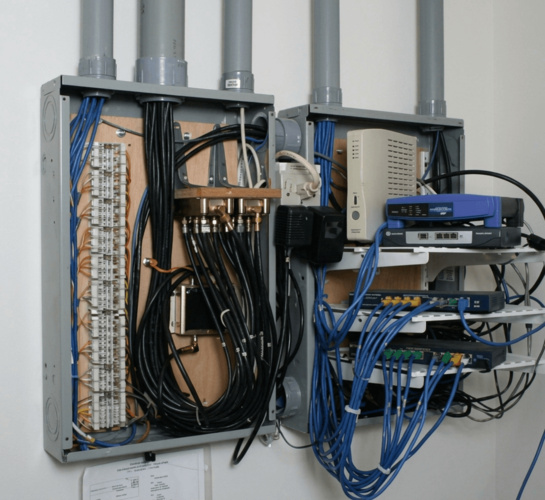

Structured wiring bundles data, phone, and video lines into a central panel for organized smart home control. Vuta Electrical installs structured wiring systems throughout Missouri homes to support growing smart device needs. This setup simplifies future upgrades and troubleshooting significantly.
